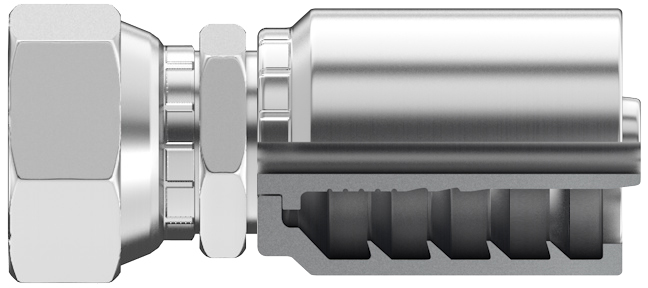

Continental B2-JCFX-0608 B2 non-skive hydraulic fitting with female jic swivel connection, for 3/8 in hose with 3/4-16 thread.
Continental B2-JCFX-0608 is a B2-series non-skive fitting for braided hydraulic hose. The fitting uses a female jic swivel connection conforming to SAE J514 37° flare and measures 2.42″ (61.5 MM) overall.
| Characteristic | Value |
|---|---|
| SKU | B2-JCFX-0608 |
| Part number | 20242050 |
| Supplier | Continental |
| Product Type | Fittings |
| Manufacturer Part Number | 20242050 |
| Fitting Series | B2 |
| Connection Type | Female JIC swivel |
| Connection Angle | Straight |
| Hose ID | 3/8" |
| Thread Size | 3/4-16 |
| Connection Standard | SAE J514 37° flare |
| Overall Length | 2.42" (61.5 MM) |
| Installation | Non-skive |
