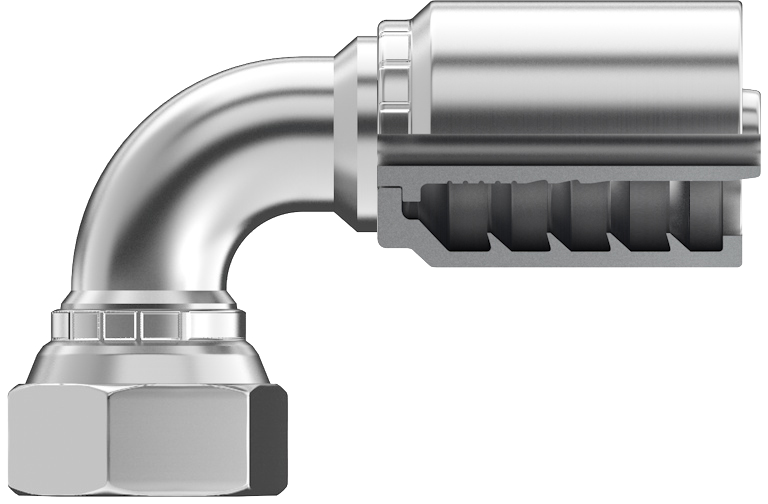

Continental B2-JCFX90-1010 B2 non-skive hydraulic fitting with female jic swivel connection and 90° elbow, for 5/8 in hose with 7/8-14 thread.
Continental B2-JCFX90-1010 is a B2-series non-skive fitting for braided hydraulic hose. The fitting uses a female jic swivel connection conforming to SAE J514 37° flare in a 90° elbow configuration.
| Characteristic | Value |
|---|---|
| SKU | B2-JCFX90-1010 |
| Part number | 20241932 |
| Supplier | Continental |
| Product Type | Fittings |
| Manufacturer Part Number | 20241932 |
| Fitting Series | B2 |
| Connection Type | Female JIC swivel |
| Connection Angle | 90° elbow |
| Hose ID | 5/8" |
| Thread Size | 7/8-14 |
| Connection Standard | SAE J514 37° flare |
| Installation | Non-skive |
