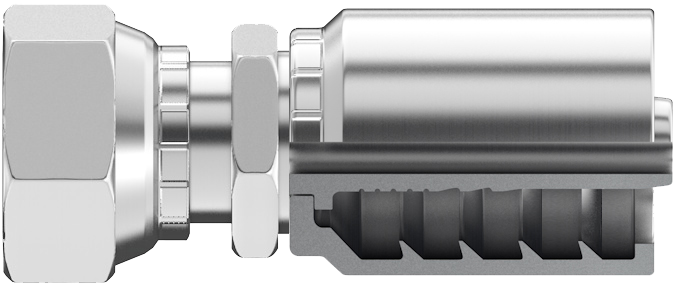

Continental B2-OFFX-0406 B2 non-skive hydraulic fitting with female orfs swivel connection, for 1/4 in hose with 11/16-16 thread.
Continental B2-OFFX-0406 is a B2-series non-skive fitting for braided hydraulic hose. The fitting uses a female orfs swivel connection conforming to SAE J1453 O-ring face seal and measures 2.17″ (55 MM) overall.
| Characteristic | Value |
|---|---|
| SKU | B2-OFFX-0406 |
| Part number | 20242141 |
| Supplier | Continental |
| Product Type | Fittings |
| Manufacturer Part Number | 20242141 |
| Fitting Series | B2 |
| Connection Type | Female ORFS swivel |
| Connection Angle | Straight |
| Hose ID | 1/4" |
| Thread Size | 11/16-16 |
| Connection Standard | SAE J1453 O-ring face seal |
| Overall Length | 2.17" (55 MM) |
| Installation | Non-skive |
